Long/Short Pass Filter

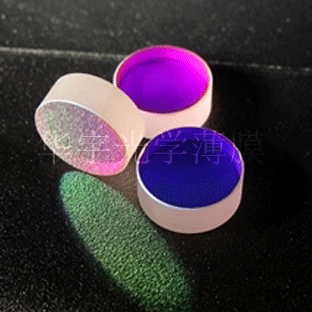

Long- wave Pass Filters
| Long-wave pass filter is thin plate plates with |
| long/pass-wave pass coating on one side, the other side |
| is AR coating. |
| Material:BK7 |
| Transmission:>90% |
| Blocking:OD6 |
| Incidence Angle:0°or 45° |
| Surface Quality:20-10 |
| Clear Aperture:>90% |
| Wavelength shift with temperature：<0.25nm/℃ |
| Damage threshold:300MW/cm2CW, 1J/cm2pulsed |
| Other wavelengths ，materials and |
| dimensions are available upon request |
Long- Pass Filters
|
